PSKD For Fire Fighting , Electric Control Wireless Fire Water Monitor Water Cannon
Product Description

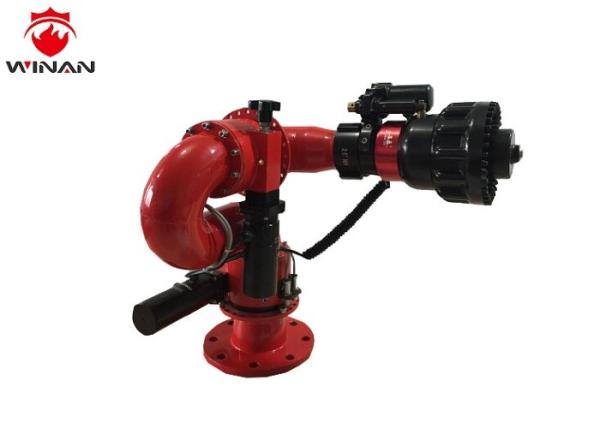

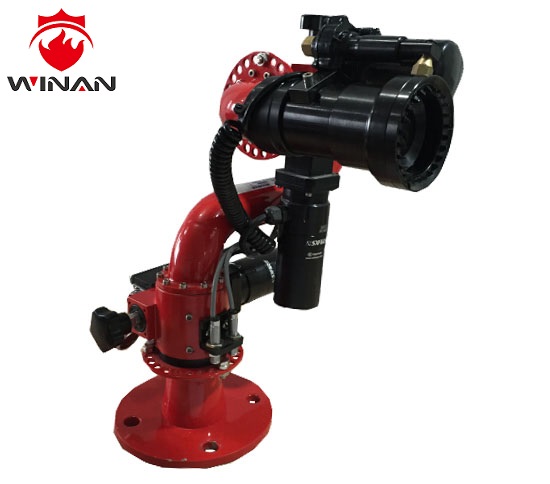

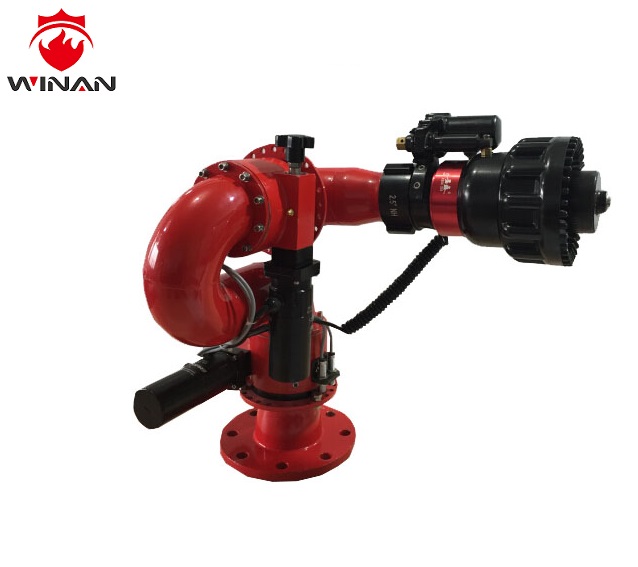

PSKD Series Electric Control Firefighting Water Monitor is DC drive of electric cable and wireless remote control two control modes, fully realized the advantages of remote operating of the fire scene, can well protect the safety of the fireman, the fire monitor has the characteristics of novel structure, stable and reliable performance, flexible operation, convenient maintenance, low inlet pressure, high flow rate, long water jet range, light weight, small volume, etc. When water jet, it used for cooling fire and put out the fire.
Technical parameters
| Model | PSKD30 | PSKD50 | PSKD60 | PSKD80 | PSKD100 | PSKD150 | PSKD200 |
| Flow rate(L/s) | 30 | 50 | 60 | 80 | 100 | 150 | 200 |
| Work pressure(MPa) | 0.8 | 1 | 1.2 | 1.4 |
| Pressure range(MPa) | 0.6~1.0 | 0.8~1.2 | 1.0~1.4 | 1.2~1.6 |
| Jetting distance(m) | ≥55 | ≥70 | ≥75 | ≥85 | ≥90 | ≥100 | ≥110 |
| Horizontal angel(°) | 0~360° |
| Vertical angel(°) | -70°~90° |
| Spray angel(°) | 110° |
| Main material | Ductile&Aluminum |
| Fire monitor head | Water direct and fog |
| Link flange | DN65 | DN100 | DN125 | DN150 | DN200 |
| Packing | Wooden case |
Features
1)Wireless remote control can be used to one control one, one control four, one control eight, one control thirty-two and other ways;
2)Has two kinds of injection function of flowering and straight jet;
3)A variety of control modes (wireless control, wired control, emergency manual control);
4)Convenient maintenance;
5)With self-locking function;
6)Water monitor head stability;
7)Low inlet pressure;
8)High flow rate,Small volume;
9)Low power consumption , light weight;
10)Wireless remote control distance ≥150m;
11)Material: stainless steel 304 or 316 optional.
Company Information
Our company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.Winan fire-fighting passed the ISO9001:2000 Quality Management System Certification in 2001 and we also passed the CCC Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the “Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the “AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.
FAQ
1.Are you a manufacturer with your own factory?
Yes, we are the manufacturer for more than 20 years.
2. Do you offer free sample for your clients?
Of course,we offer free sample for many products.
3. What is your usual payment term?
We accept T/T, L/C and Western Union.
4. How long is the delivery time?
Shipped in 15 days after payment.
5. Do you have technical support?
Yes, we have a professional engineering team.
