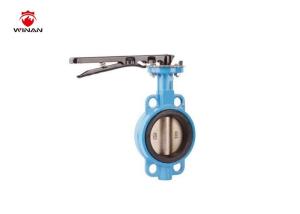

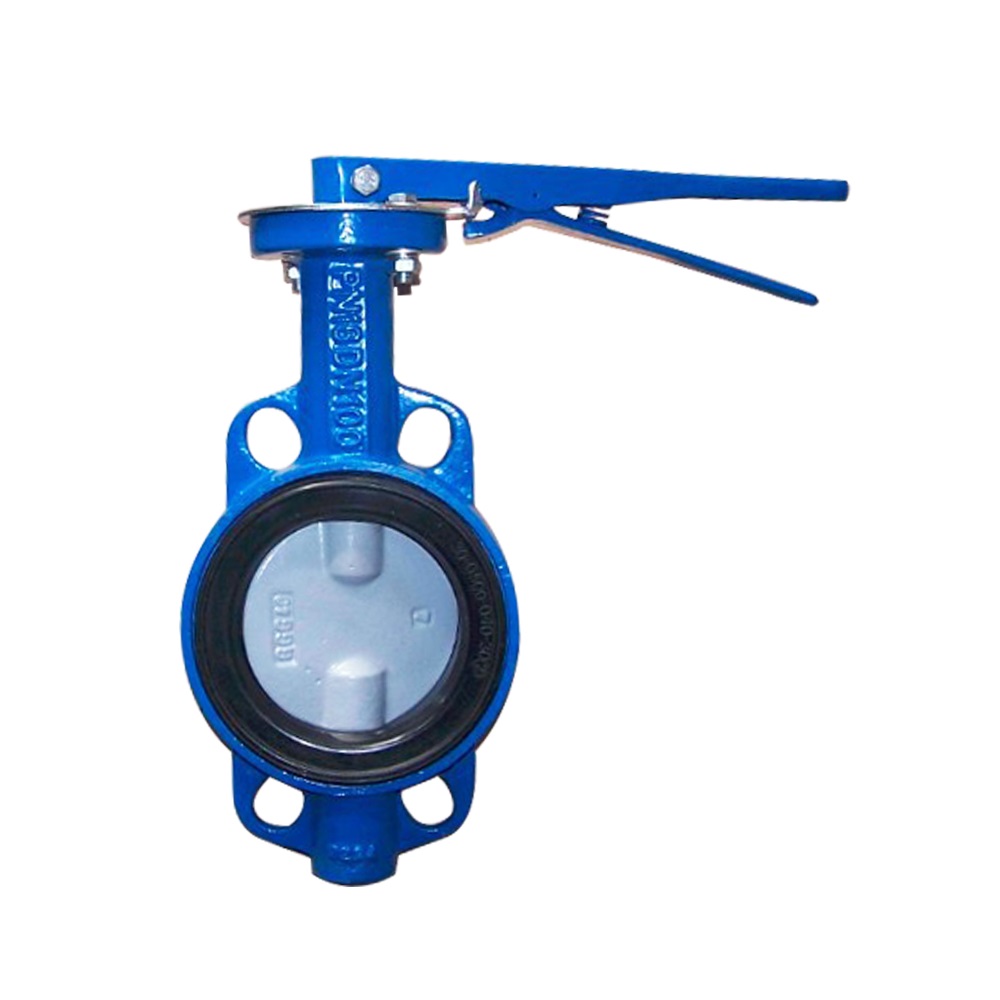

Wafer Type Butterfly Valve Handles Lever Operated Slim Disc Cast Iron
Introduction:
The disc of the wafer type butterfly valve is installed in the diameter direction of the pipe. In the cylindrical passage of the butterfly valve body, the disc-shaped disc rotates around the axis, and the rotation angle is between 0°-90°, which can play the role of flow regulation. When the disc rotates to 90°, the valve reaches the maximum. Opening degree. The clip-on butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover, it can be quickly opened and closed by only rotating 90°, and the operation is simple, and the valve has good fluid control characteristics.
Parameter:

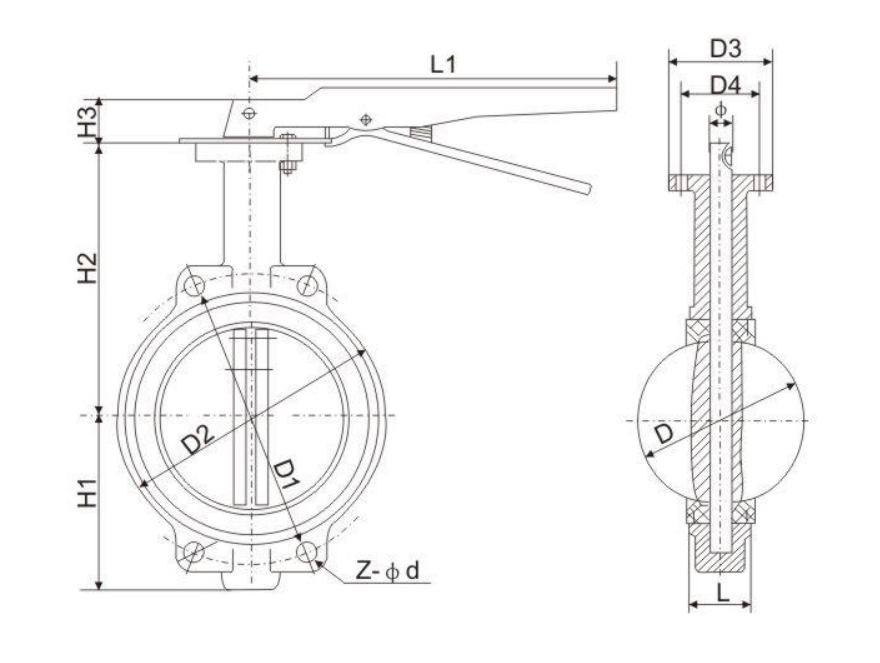

主要尺寸表Main dimensions
| DN | L | L1 | D | D1 | D2 | D3 | D4 | | H1 | H2 | H3 | Z-<J)d |
| (mm) | 1.0 | 1.6 | 1.0 | 1.6 |
| 50 | 42 | 220 | 52.9 | 125 | 125 | 92 | 77 | 57 | 12.6 | 70 | 147 | 32 | 4-4)23 | 4-4)23 |
| 65 | 44.7 | 220 | 64.5 | 145 | 145 | 110 | 77 | 57 | 12.6 | 76 | 155 | 32 | 4-4)23 | 4-4)23 |
| 80 | 45.2 | 255 | 78.8 | 160 | 160 | 121 | 77 | 57 | 12.6 | 92 | 164 | 32 | 8-4)20 | 8- 20 |
| 100 | 52.1 | 255 | 104 | 180 | 180 | 153 | 92 | 70 | 15.78 | 106 | 175 | 32 | 4-4)23 | 4-4)23 |
| 125 | 54.4 | 290 | 123.3 | 210 | 210 | 176 | 92 | 70 | 18.92 | 119 | 194 | 32 | 4-4)23 | 4-4)23 |
| 150 | 55.8 | 290 | 155.6 | 240 | 240 | 207 | 92 | 70 | 18.92 | 132 | 206 | 32 | 4-4)25 | 4-4)25 |
| 200 | 60.6 | 340 | 202.5 | 295 | 295 | 259 | 115 | 89 | 22.10 | 162 | 237 | 45 | 4-(J>25 | 4-¢25 |
Main Material:
| Name | Material |
| Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
| Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
| Shaft | Stainless Steel Monel K500 |
| Seat | BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber |
FAQ:
1. Do you offer a free sample for your clients?
Yes, we can offer you a free sample.
2. What's the MOQ of your products?
MOQ is ONE pcs/set.
3. Are you a manufacturer with your own factory?
Yes, we are the manufacturer for more than 20 years.
4. What's your payment terms?
We accept T/T, L/C, Western Union, Paypal, etc.
5. How long is the delivery time?
Usually around 15 days after payment.
6. Can you accept OEM?
Yes, we do customized design for our clients.
